For Business Use

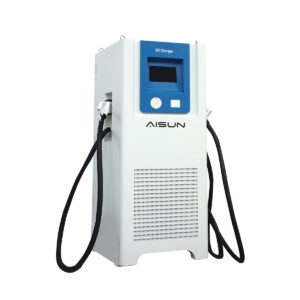

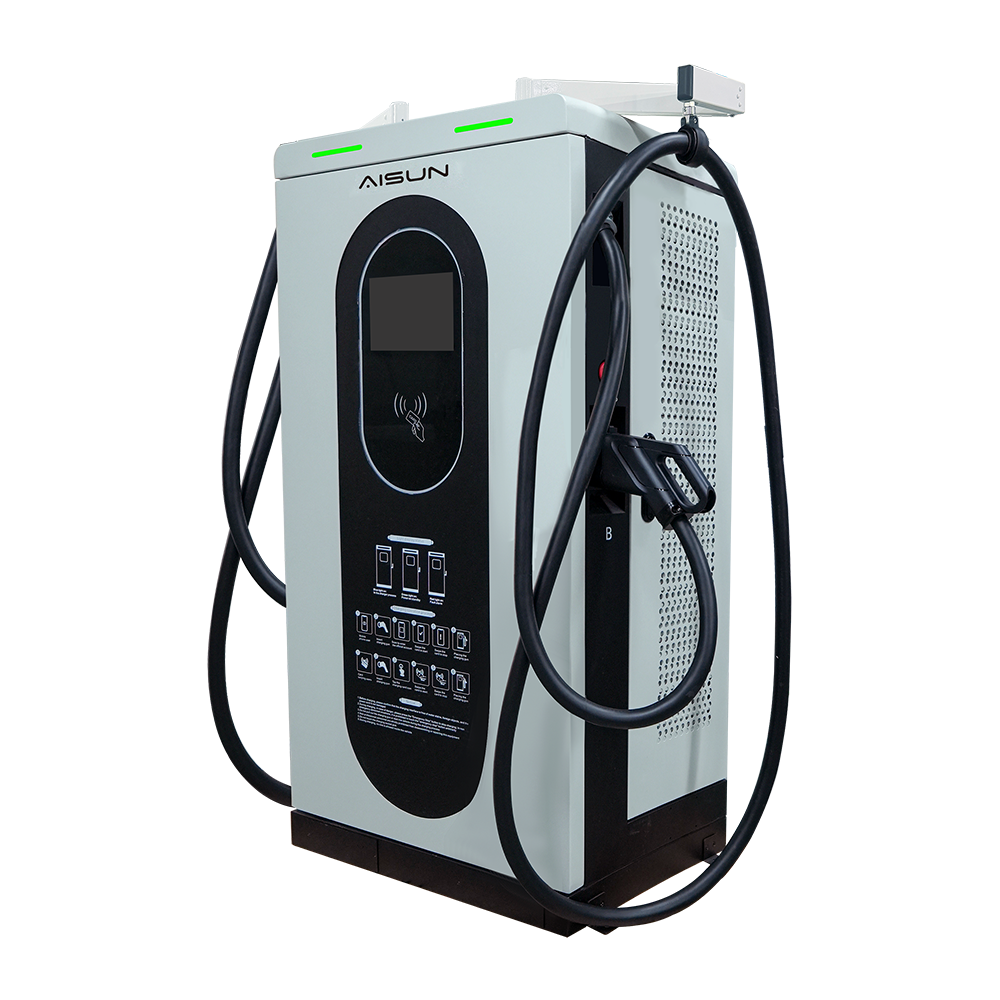

DC EV Charger European Standard

60kW | 90kW | 120kW | 150kW

Safety Protections
High Power Output
Faster Charging

Get a Quote Brochure

High Voltage Output

Offers an output voltage range of 200-1000V, catering to a variety of vehicles, from small cars to large buses.
High Power Output

Provides fast charging with high power (60kW-360kW), making it suitable for large parking lots, residential areas, and shopping malls.

Learn the Basics Through Videos

Watch the video to learn the basics of AiPower Charger design and how the system works.

Features

Intelligent Power Distribution

Intelligent power distribution allocates power as needed every power module works on its own, maximizing the module utilization.

High Input Voltage

High input voltage 380V+15%, won't stop charging with small voltage fluctuations.

Intelligent Cooling

Modular heat dissipation design, independent work, the fan works based on station's working condition, low noise pollution.

Modular Design

Compact and modular design 60kw up to 150kw, customization available.

Backstage Monitoring

Real-time monitoring of the station status.

Load Balancing

More effective connection to the load system.

Specification

Model

EVSED60KW-D1-EU01

EVSED90KW-D1-EU01

EVSED120KW-D1-EU01

EVSED150KW-D1-EU01

AC Input

Input Rating	380V±15% 3ph
Number of Phase/ Wire	3ph / L1, L2, L3, PE
Frequency	50/60 Hz
Power Factor	>0.98
Current THD	<5%
Efficiency	>95%

Power output & Protection

Output Power	60kW	90KW	120KW	150KW
Voltage Accuracy	±0.5%
Current Accuracy	±1%
Output Voltage Range	200V-1000V DC
Protection	Over current, Under voltage, Over voltage, Residual current, Surge, Short circuit, Over temperature, Ground fault

User interface & Control

Display	10.1 inch LCD screen & touch panel
Support Language	English
	(Other languages available upon request)
Charge Option	Charge options to be provided upon request: Charge by duration, Charge by energy, Charge by fee
Charging Interface	CCS2
User Authentication	Plug&charge/ RFID card/ APP

Communication & Environmental

Network	Ethernet, Wi-Fi, 4G
Open Charge Point Protocol	OCPP1.6 / OCPP2.0
Operating Temperature	-20 ℃ to 55℃ (derating when over 55℃)
Storage Temperature	-40 ℃to +70℃
Humidity	≤95% relative humidity, non-condensing
Altitude	Up to 2000 m (6000 feet)

Mechanical & Compliance

Ingress Protection	IP54
Enclosure Protection	IK10 according to IEC 62262
Cooling	Forced air
Charging Cable Length	5m
Dimension (WDH) mm	6507001500mm
Net Weight	370kg	390kg	420kg	450kg
Certificate	CE / EN 61851-1/-23

Inquire Now

Let's Power a Sustainable World With EV Charger

As the world embraces sustainable energy and electric vehicles, reliable charging infrastructure is more critical than ever. With rising EV demand, companies are stepping up to provide comprehensive charging solutions.
